EAS In-Flight Calibration tables
The refernce values that are used for interpolations are EAS GROUND Calibrations.
This page documents the EAS calibration values that are being used to produce science data (L2 soft V02.00.00). The first two sections present the deflector ratios applied,
elevation resolution, peak elevation and interpolated geometric factors (from ground GFs) for 32 anodes, respectively, for EAS1 and EAS2
sensors. Section 3 shows the formula used to calculate the quantum efficiencies and the table shows energy
table and quantum efficiencies. Same energy table has been used for both EAS1 and EAS2.
Onboard the Elevation selection has changed twice since launch i.e On 2020-08-19 and 2021-07-17. So, the Anode geometric factors were obtained for the three sets of elevations, one before 2020-08-19, one between 2020-08-19 and 2021-07-17 and one from 2021-07-17, by interpolation from the ground Anode
geometric factors. These interpolations are from the basis GFs of DOKs version circulated on 2021-07-23.
1) EAS1 Geometric factors until 18 August 2020
| | | Elevation(deg) | Anode Geometric factors (cm^2 sr eV/eV) |
|---|
| Deflector Ratios |
Elevation Resolution (deg) |
(instr. look directions) |
Anode01(5.625) | Anode02(16.875) | Anode03(28.125) | Anode04(39.375) | Anode05(50.625) | Anode06(61.875) | Anode07(73.125) | Anode08(84.375) | Anode09(95.625) | Anode10(106.875) | Anode11(118.125) | Anode12(129.375) | Anode13(140.625) | Anode14(151.875) | Anode15(163.125) | Anode16(174.375) | Anode17(185.625) | Anode18(196.875) | Anode19(208.125) | Anode20(219.375) | Anode21(230.625) | Anode22(241.875) | Anode23(253.125) | Anode24(264.375) | Anode25(275.625) | Anode26(286.875) | Anode27(298.125) | Anode28(309.375) | Anode29(320.625) | Anode30(331.875) | Anode31(343.125) | Anode32(354.375) |
|---|
| +3.0 | 9.684 | 39.53062 | 3.661345e-05 | 3.507524e-05 | 3.773479e-05 | 3.957524e-05 | 3.981793e-05 | 4.140107e-05 | 4.226852e-05 | 2.568538e-05 | 3.298196e-05 | 4.938196e-05 | 4.171793e-05 | 3.711345e-05 | 3.825165e-05 | 3.97842e-05 | 4.116062e-05 | 4.244376e-05 | 4.237748e-05 | 4.597972e-05 | 2.9773e-05 | 3.232807e-05 | 4.725389e-05 | 4.641345e-05 | 4.295383e-05 | 4.295383e-05 | 3.903977e-05 | 3.903977e-05 | 4.211121e-05 | 4.263703e-05 | 2.730448e-05 | 2.626179e-05 | 4.019658e-05 | 3.751121e-05 |
| +2.6 | 8.27 | 29.3875 | 3.056151e-05 | 2.910849e-05 | 3.166151e-05 | 3.313981e-05 | 3.339886e-05 | 3.395188e-05 | 3.46483e-05 | 2.226509e-05 | 2.619886e-05 | 4.045188e-05 | 3.523622e-05 | 3.163018e-05 | 3.224585e-05 | 3.232056e-05 | 3.30832e-05 | 3.46266e-05 | 3.506754e-05 | 3.63266e-05 | 2.605547e-05 | 2.903981e-05 | 3.906999e-05 | 3.973018e-05 | 3.695188e-05 | 3.695188e-05 | 3.492415e-05 | 3.492415e-05 | 3.609886e-05 | 3.662056e-05 | 2.422415e-05 | 2.353981e-05 | 3.32266e-05 | 3.174585e-05 |
| +2.2 | 7.158 | 20.67109 | 2.708904e-05 | 2.562763e-05 | 2.766623e-05 | 2.976228e-05 | 2.926228e-05 | 2.936623e-05 | 2.857412e-05 | 2.001974e-05 | 2.186623e-05 | 3.638904e-05 | 3.102368e-05 | 2.759693e-05 | 2.829693e-05 | 2.756623e-05 | 2.847018e-05 | 2.962763e-05 | 3.050088e-05 | 3.060877e-05 | 2.256623e-05 | 2.553158e-05 | 3.277018e-05 | 3.530483e-05 | 3.308509e-05 | 3.308509e-05 | 3.165833e-05 | 3.165833e-05 | 3.183158e-05 | 3.160483e-05 | 2.135044e-05 | 2.061974e-05 | 2.822763e-05 | 2.799298e-05 |
| +1.8 | 6.195 | 13.12983 | 2.508328e-05 | 2.348925e-05 | 2.598806e-05 | 2.728328e-05 | 2.669283e-05 | 2.679283e-05 | 2.597969e-05 | 1.759164e-05 | 1.947731e-05 | 3.338447e-05 | 2.838925e-05 | 2.538089e-05 | 2.589283e-05 | 2.518447e-05 | 2.667611e-05 | 2.738447e-05 | 2.729403e-05 | 2.827253e-05 | 1.989403e-05 | 2.369164e-05 | 3.008447e-05 | 3.258447e-05 | 3.079044e-05 | 3.079044e-05 | 2.859044e-05 | 2.859044e-05 | 2.909642e-05 | 2.927611e-05 | 1.959761e-05 | 1.918686e-05 | 2.558925e-05 | 2.598806e-05 |
| +1.4 | 5.582 | 6.478693 | 2.360199e-05 | 2.235497e-05 | 2.473047e-05 | 2.577749e-05 | 2.578146e-05 | 2.588146e-05 | 2.407947e-05 | 1.667947e-05 | 1.747749e-05 | 3.183047e-05 | 2.720596e-05 | 2.384901e-05 | 2.490795e-05 | 2.370398e-05 | 2.457749e-05 | 2.585497e-05 | 2.665298e-05 | 2.582848e-05 | 1.920398e-05 | 2.270596e-05 | 2.845696e-05 | 3.120199e-05 | 2.963246e-05 | 2.963246e-05 | 2.760398e-05 | 2.760398e-05 | 2.830994e-05 | 2.717749e-05 | 1.915497e-05 | 1.795298e-05 | 2.435696e-05 | 2.477947e-05 |
| +1.0 | 4.819 | 0.6046736 | 2.316668e-05 | 2.156667e-05 | 2.356671e-05 | 2.513336e-05 | 2.48e-05 | 2.476668e-05 | 2.303338e-05 | 1.603333e-05 | 1.690002e-05 | 3.113332e-05 | 2.610002e-05 | 2.356672e-05 | 2.373333e-05 | 2.290002e-05 | 2.386671e-05 | 2.500001e-05 | 2.586671e-05 | 2.500003e-05 | 1.866666e-05 | 2.163335e-05 | 2.730001e-05 | 3.026674e-05 | 2.833335e-05 | 2.833335e-05 | 2.676669e-05 | 2.676669e-05 | 2.699998e-05 | 2.650003e-05 | 1.84e-05 | 1.743334e-05 | 2.333333e-05 | 2.390002e-05 |
| +0.6 | 4.261 | -4.523099 | 2.284215e-05 | 2.141323e-05 | 2.29e-05 | 2.46e-05 | 2.488677e-05 | 2.435538e-05 | 2.247355e-05 | 1.61e-05 | 1.655785e-05 | 3.11686e-05 | 2.564215e-05 | 2.28157e-05 | 2.374215e-05 | 2.252892e-05 | 2.322892e-05 | 2.46843e-05 | 2.511323e-05 | 2.442892e-05 | 1.865538e-05 | 2.14157e-05 | 2.701323e-05 | 2.905785e-05 | 2.78843e-05 | 2.78843e-05 | 2.638677e-05 | 2.638677e-05 | 2.725538e-05 | 2.592892e-05 | 1.834215e-05 | 1.744462e-05 | 2.348677e-05 | 2.35e-05 |
| +0.2 | 3.618 | -8.972843 | 2.27e-05 | 2.118804e-05 | 2.293589e-05 | 2.458804e-05 | 2.504019e-05 | 2.402392e-05 | 2.291196e-05 | 1.615981e-05 | 1.667608e-05 | 3.068373e-05 | 2.557177e-05 | 2.304019e-05 | 2.356411e-05 | 2.258804e-05 | 2.326411e-05 | 2.44e-05 | 2.492392e-05 | 2.451196e-05 | 1.835981e-05 | 2.166411e-05 | 2.690766e-05 | 2.92e-05 | 2.76e-05 | 2.76e-05 | 2.654019e-05 | 2.654019e-05 | 2.69e-05 | 2.6e-05 | 1.82e-05 | 1.776411e-05 | 2.372392e-05 | 2.351196e-05 |
| -0.2 | 3.197 | -12.82203 | 2.27e-05 | 2.111595e-05 | 2.315215e-05 | 2.451595e-05 | 2.467975e-05 | 2.41681e-05 | 2.298405e-05 | 1.652025e-05 | 1.65319e-05 | 3.118835e-05 | 2.60043e-05 | 2.267975e-05 | 2.334785e-05 | 2.251595e-05 | 2.304785e-05 | 2.44e-05 | 2.50681e-05 | 2.458405e-05 | 1.872025e-05 | 2.144785e-05 | 2.755645e-05 | 2.92e-05 | 2.76e-05 | 2.76e-05 | 2.617975e-05 | 2.617975e-05 | 2.69e-05 | 2.6e-05 | 1.82e-05 | 1.754785e-05 | 2.38681e-05 | 2.358405e-05 |
| -0.6 | 3.024 | -16.33567 | 2.245541e-05 | 2.124676e-05 | 2.334676e-05 | 2.464676e-05 | 2.474676e-05 | 2.42e-05 | 2.309784e-05 | 1.679568e-05 | 1.698919e-05 | 3.139784e-05 | 2.605108e-05 | 2.304027e-05 | 2.369135e-05 | 2.264676e-05 | 2.348919e-05 | 2.474243e-05 | 2.539351e-05 | 2.474676e-05 | 1.894676e-05 | 2.184027e-05 | 2.794459e-05 | 2.929784e-05 | 2.799135e-05 | 2.799135e-05 | 2.649135e-05 | 2.649135e-05 | 2.704676e-05 | 2.644027e-05 | 1.868919e-05 | 1.774459e-05 | 2.414459e-05 | 2.384459e-05 |
| -1.0 | 2.923 | -19.69455 | 2.238324e-05 | 2.148144e-05 | 2.363234e-05 | 2.493234e-05 | 2.496108e-05 | 2.431198e-05 | 2.341378e-05 | 1.709162e-05 | 1.76018e-05 | 3.161198e-05 | 2.613234e-05 | 2.358144e-05 | 2.42527e-05 | 2.297306e-05 | 2.406108e-05 | 2.518144e-05 | 2.583234e-05 | 2.511378e-05 | 1.927306e-05 | 2.243234e-05 | 2.837306e-05 | 2.948144e-05 | 2.851198e-05 | 2.851198e-05 | 2.69509e-05 | 2.69509e-05 | 2.732216e-05 | 2.704252e-05 | 1.928144e-05 | 1.809162e-05 | 2.451198e-05 | 2.42018e-05 |
| -1.4 | 2.884 | -22.97413 | 2.342068e-05 | 2.194252e-05 | 2.43816e-05 | 2.56816e-05 | 2.530689e-05 | 2.494597e-05 | 2.462412e-05 | 1.761034e-05 | 1.817815e-05 | 3.224597e-05 | 2.68816e-05 | 2.404252e-05 | 2.511723e-05 | 2.395286e-05 | 2.440689e-05 | 2.564252e-05 | 2.65816e-05 | 2.632412e-05 | 2.025286e-05 | 2.31816e-05 | 2.935286e-05 | 2.994252e-05 | 2.914597e-05 | 2.914597e-05 | 2.723908e-05 | 2.723908e-05 | 2.801378e-05 | 2.784941e-05 | 1.974252e-05 | 1.861034e-05 | 2.514597e-05 | 2.477815e-05 |
| -1.8 | 3.232 | -26.42802 | 2.457954e-05 | 2.291752e-05 | 2.548993e-05 | 2.670714e-05 | 2.632791e-05 | 2.604512e-05 | 2.610032e-05 | 1.842435e-05 | 1.902435e-05 | 3.378668e-05 | 2.812791e-05 | 2.501752e-05 | 2.631752e-05 | 2.491396e-05 | 2.531752e-05 | 2.667272e-05 | 2.780032e-05 | 2.79659e-05 | 2.165551e-05 | 2.395876e-05 | 3.103148e-05 | 3.11383e-05 | 3.024512e-05 | 3.024512e-05 | 2.820032e-05 | 2.820032e-05 | 2.920032e-05 | 2.92383e-05 | 2.060714e-05 | 1.972791e-05 | 2.652109e-05 | 2.592791e-05 |
| -2.2 | 3.858 | -30.4321 | 2.600974e-05 | 2.468825e-05 | 2.719254e-05 | 2.820544e-05 | 2.837105e-05 | 2.788395e-05 | 2.807535e-05 | 1.971833e-05 | 2.031833e-05 | 3.671518e-05 | 3.017105e-05 | 2.678825e-05 | 2.808825e-05 | 2.593553e-05 | 2.708825e-05 | 2.857965e-05 | 2.977535e-05 | 3.034956e-05 | 2.376676e-05 | 2.484412e-05 | 3.382377e-05 | 3.345386e-05 | 3.208395e-05 | 3.208395e-05 | 3.017535e-05 | 3.017535e-05 | 3.117535e-05 | 3.155386e-05 | 2.210544e-05 | 2.177105e-05 | 2.904097e-05 | 2.797105e-05 |
| -2.6 | 4.849 | -35.34942 | 2.991738e-05 | 2.727007e-05 | 3.021918e-05 | 3.144373e-05 | 3.156888e-05 | 3.114373e-05 | 3.276589e-05 | 2.264433e-05 | 2.294492e-05 | 4.146589e-05 | 3.404253e-05 | 3.026828e-05 | 3.119403e-05 | 2.974253e-05 | 3.056828e-05 | 3.206828e-05 | 3.304373e-05 | 3.544014e-05 | 2.674433e-05 | 2.722037e-05 | 3.826649e-05 | 3.794134e-05 | 3.609223e-05 | 3.609223e-05 | 3.404253e-05 | 3.404253e-05 | 3.496768e-05 | 3.514313e-05 | 2.407127e-05 | 2.369642e-05 | 3.316709e-05 | 3.131858e-05 |
| -3.0 | 6.119 | -41.54398 | 3.529632e-05 | 3.253768e-05 | 3.53646e-05 | 3.700596e-05 | 3.717423e-05 | 3.718386e-05 | 3.791842e-05 | 2.537507e-05 | 2.714533e-05 | 4.736941e-05 | 4.103485e-05 | 3.597423e-05 | 3.691077e-05 | 3.536941e-05 | 3.675213e-05 | 3.825213e-05 | 3.949349e-05 | 4.256177e-05 | 3.015779e-05 | 3.011643e-05 | 4.502522e-05 | 4.486177e-05 | 4.252041e-05 | 4.252041e-05 | 4.001077e-05 | 4.001077e-05 | 4.070596e-05 | 4.121559e-05 | 2.64068e-05 | 2.627989e-05 | 3.921077e-05 | 3.615496e-05 |

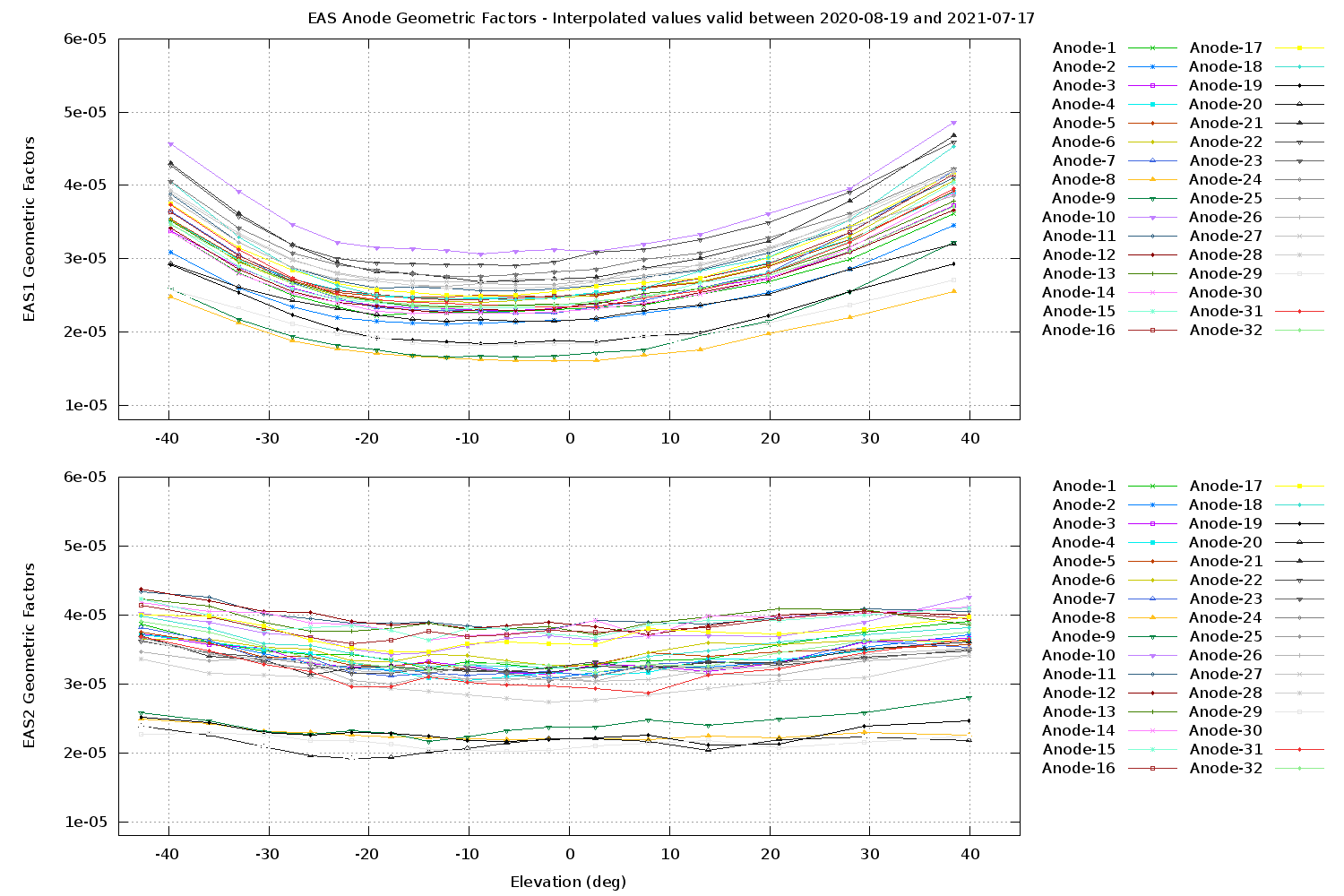

2) EAS1 Geometric factors between 19 August 2020 and 16 July 2021
| | | Elevation(deg) | Anode Geometric factors (cm^2 sr eV/eV) |
|---|
| Deflector Ratios |
Elevation Resolution (deg) |
(instr. look directions) |
Anode01(5.625) | Anode02(16.875) | Anode03(28.125) | Anode04(39.375) | Anode05(50.625) | Anode06(61.875) | Anode07(73.125) | Anode08(84.375) | Anode09(95.625) | Anode10(106.875) | Anode11(118.125) | Anode12(129.375) | Anode13(140.625) | Anode14(151.875) | Anode15(163.125) | Anode16(174.375) | Anode17(185.625) | Anode18(196.875) | Anode19(208.125) | Anode20(219.375) | Anode21(230.625) | Anode22(241.875) | Anode23(253.125) | Anode24(264.375) | Anode25(275.625) | Anode26(286.875) | Anode27(298.125) | Anode28(309.375) | Anode29(320.625) | Anode30(331.875) | Anode31(343.125) | Anode32(354.375) |
|---|
| +2.702 | 12.40 | 38.394 | 3.612176e-05 | 3.4518e-05 | 3.719394e-05 | 3.9018e-05 | 3.916235e-05 | 4.063076e-05 | 4.195712e-05 | 2.548871e-05 | 3.217888e-05 | 4.857888e-05 | 4.106235e-05 | 3.662176e-05 | 3.782553e-05 | 3.889917e-05 | 4.04067e-05 | 4.157511e-05 | 4.173829e-05 | 4.525859e-05 | 2.92977e-05 | 3.203306e-05 | 4.674582e-05 | 4.592176e-05 | 4.228126e-05 | 4.228126e-05 | 3.857858e-05 | 3.857858e-05 | 4.170147e-05 | 4.201423e-05 | 2.714059e-05 | 2.619624e-05 | 3.959017e-05 | 3.710147e-05 |
| +2.044 | 9.070 | 27.99 | 2.989996e-05 | 2.851782e-05 | 3.099996e-05 | 3.259639e-05 | 3.264281e-05 | 3.312495e-05 | 3.351421e-05 | 2.191069e-05 | 2.544281e-05 | 3.962495e-05 | 3.438566e-05 | 3.092138e-05 | 3.156067e-05 | 3.144637e-05 | 3.230352e-05 | 3.361065e-05 | 3.426423e-05 | 3.531065e-05 | 2.553568e-05 | 2.849639e-05 | 3.781778e-05 | 3.902138e-05 | 3.612495e-05 | 3.612495e-05 | 3.435711e-05 | 3.435711e-05 | 3.534281e-05 | 3.574637e-05 | 2.365711e-05 | 2.299639e-05 | 3.221065e-05 | 3.106067e-05 |
| +1.479 | 7.350 | 19.818 | 2.68348e-05 | 2.531357e-05 | 2.729235e-05 | 2.943327e-05 | 2.893327e-05 | 2.899235e-05 | 2.811051e-05 | 1.979541e-05 | 2.149235e-05 | 3.61348e-05 | 3.075449e-05 | 2.725296e-05 | 2.795296e-05 | 2.719235e-05 | 2.805143e-05 | 2.931357e-05 | 3.011204e-05 | 3.013021e-05 | 2.219235e-05 | 2.517265e-05 | 3.235143e-05 | 3.487112e-05 | 3.287571e-05 | 3.287571e-05 | 3.137418e-05 | 3.137418e-05 | 3.147265e-05 | 3.117112e-05 | 2.115602e-05 | 2.039541e-05 | 2.791357e-05 | 2.769388e-05 |
| +0.994 | 6.110 | 13.086 | 2.507189e-05 | 2.348193e-05 | 2.597992e-05 | 2.727189e-05 | 2.668795e-05 | 2.678795e-05 | 2.596587e-05 | 1.758595e-05 | 1.946185e-05 | 3.33739e-05 | 2.838193e-05 | 2.536788e-05 | 2.588795e-05 | 2.51739e-05 | 2.665985e-05 | 2.73739e-05 | 2.728996e-05 | 2.825382e-05 | 1.988996e-05 | 2.368595e-05 | 3.00739e-05 | 3.25739e-05 | 3.078394e-05 | 3.078394e-05 | 2.858394e-05 | 2.858394e-05 | 2.909398e-05 | 2.925985e-05 | 1.959598e-05 | 1.917792e-05 | 2.558193e-05 | 2.597992e-05 |
| +0.578 | 5.160 | 7.461 | 2.367459e-05 | 2.253647e-05 | 2.493012e-05 | 2.586824e-05 | 2.601742e-05 | 2.611742e-05 | 2.424283e-05 | 1.684283e-05 | 1.756824e-05 | 3.203012e-05 | 2.742377e-05 | 2.381271e-05 | 2.519836e-05 | 2.384918e-05 | 2.466824e-05 | 2.603647e-05 | 2.676188e-05 | 2.595553e-05 | 1.934918e-05 | 2.292377e-05 | 2.871106e-05 | 3.127459e-05 | 2.990471e-05 | 2.990471e-05 | 2.774918e-05 | 2.774918e-05 | 2.867295e-05 | 2.726824e-05 | 1.933647e-05 | 1.806188e-05 | 2.461106e-05 | 2.494283e-05 |
| +0.219 | 3.460 | 2.655 | 2.331938e-05 | 2.164845e-05 | 2.39533e-05 | 2.542423e-05 | 2.486299e-05 | 2.496299e-05 | 2.344361e-05 | 1.604361e-05 | 1.712423e-05 | 3.10533e-05 | 2.635814e-05 | 2.399031e-05 | 2.377752e-05 | 2.313876e-05 | 2.422423e-05 | 2.514845e-05 | 2.622907e-05 | 2.533392e-05 | 1.863876e-05 | 2.185814e-05 | 2.746783e-05 | 3.091938e-05 | 2.857268e-05 | 2.857268e-05 | 2.703876e-05 | 2.703876e-05 | 2.68969e-05 | 2.682423e-05 | 1.844845e-05 | 1.752907e-05 | 2.336783e-05 | 2.414361e-05 |
| -0.096 | 3.960 | -1.548 | 2.300618e-05 | 2.152655e-05 | 2.316546e-05 | 2.481237e-05 | 2.48e-05 | 2.460618e-05 | 2.2592e-05 | 1.607345e-05 | 1.665927e-05 | 3.129382e-05 | 2.585927e-05 | 2.304509e-05 | 2.377345e-05 | 2.265927e-05 | 2.346546e-05 | 2.487964e-05 | 2.546546e-05 | 2.463891e-05 | 1.874691e-05 | 2.143273e-05 | 2.717964e-05 | 2.950437e-05 | 2.813273e-05 | 2.813273e-05 | 2.648582e-05 | 2.648582e-05 | 2.724073e-05 | 2.613891e-05 | 1.84e-05 | 1.735309e-05 | 2.337345e-05 | 2.365927e-05 |
| -0.379 | 3.630 | -5.328 | 2.281213e-05 | 2.136819e-05 | 2.29e-05 | 2.46e-05 | 2.493181e-05 | 2.428032e-05 | 2.256362e-05 | 1.61e-05 | 1.658787e-05 | 3.104851e-05 | 2.561213e-05 | 2.287574e-05 | 2.371213e-05 | 2.254394e-05 | 2.324394e-05 | 2.462426e-05 | 2.506819e-05 | 2.444394e-05 | 1.858032e-05 | 2.147574e-05 | 2.696819e-05 | 2.908787e-05 | 2.782426e-05 | 2.782426e-05 | 2.643181e-05 | 2.643181e-05 | 2.718032e-05 | 2.594394e-05 | 1.831213e-05 | 1.751968e-05 | 2.353181e-05 | 2.35e-05 |
| -0.642 | 3.440 | -8.856 | 2.27e-05 | 2.119023e-05 | 2.292932e-05 | 2.459023e-05 | 2.505113e-05 | 2.401955e-05 | 2.290977e-05 | 1.614887e-05 | 1.668045e-05 | 3.066842e-05 | 2.555864e-05 | 2.305113e-05 | 2.357068e-05 | 2.259023e-05 | 2.327068e-05 | 2.44e-05 | 2.491955e-05 | 2.450977e-05 | 1.834887e-05 | 2.167068e-05 | 2.688796e-05 | 2.92e-05 | 2.76e-05 | 2.76e-05 | 2.655113e-05 | 2.655113e-05 | 2.69e-05 | 2.6e-05 | 1.82e-05 | 1.777068e-05 | 2.371955e-05 | 2.350977e-05 |
| -0.895 | 3.390 | -12.258 | 2.27e-05 | 2.112651e-05 | 2.312046e-05 | 2.452651e-05 | 2.473257e-05 | 2.414697e-05 | 2.297349e-05 | 1.646743e-05 | 1.655303e-05 | 3.111441e-05 | 2.594092e-05 | 2.273257e-05 | 2.337954e-05 | 2.252651e-05 | 2.307954e-05 | 2.44e-05 | 2.504697e-05 | 2.457349e-05 | 1.866743e-05 | 2.147954e-05 | 2.746138e-05 | 2.92e-05 | 2.76e-05 | 2.76e-05 | 2.623257e-05 | 2.623257e-05 | 2.69e-05 | 2.6e-05 | 1.82e-05 | 1.757954e-05 | 2.384697e-05 | 2.357349e-05 |
| -1.146 | 3.460 | -15.669 | 2.251666e-05 | 2.121e-05 | 2.331e-05 | 2.461e-05 | 2.471e-05 | 2.42e-05 | 2.307334e-05 | 1.674667e-05 | 1.686668e-05 | 3.137334e-05 | 2.606333e-05 | 2.293001e-05 | 2.359334e-05 | 2.261e-05 | 2.336668e-05 | 2.465667e-05 | 2.532001e-05 | 2.471e-05 | 1.891e-05 | 2.173001e-05 | 2.788334e-05 | 2.927334e-05 | 2.789334e-05 | 2.789334e-05 | 2.639334e-05 | 2.639334e-05 | 2.701e-05 | 2.633001e-05 | 1.856668e-05 | 1.768334e-05 | 2.408334e-05 | 2.378334e-05 |
| -1.405 | 3.700 | -19.242 | 2.224008e-05 | 2.141781e-05 | 2.352895e-05 | 2.482895e-05 | 2.491336e-05 | 2.422449e-05 | 2.324676e-05 | 1.702004e-05 | 1.752227e-05 | 3.152449e-05 | 2.602895e-05 | 2.351781e-05 | 2.41334e-05 | 2.283785e-05 | 2.401336e-05 | 2.511781e-05 | 2.572895e-05 | 2.494676e-05 | 1.913785e-05 | 2.232895e-05 | 2.823785e-05 | 2.941781e-05 | 2.842449e-05 | 2.842449e-05 | 2.691113e-05 | 2.691113e-05 | 2.722672e-05 | 2.693117e-05 | 1.921781e-05 | 1.802004e-05 | 2.442449e-05 | 2.412227e-05 |
| -1.683 | 4.130 | -23.148 | 2.347568e-05 | 2.196697e-05 | 2.442132e-05 | 2.572132e-05 | 2.532523e-05 | 2.497958e-05 | 2.468829e-05 | 1.763784e-05 | 1.820871e-05 | 3.227958e-05 | 2.692132e-05 | 2.406697e-05 | 2.516306e-05 | 2.400481e-05 | 2.442523e-05 | 2.566697e-05 | 2.662132e-05 | 2.638829e-05 | 2.030481e-05 | 2.322132e-05 | 2.940481e-05 | 2.996697e-05 | 2.917958e-05 | 2.917958e-05 | 2.725435e-05 | 2.725435e-05 | 2.805045e-05 | 2.789219e-05 | 1.976697e-05 | 1.863784e-05 | 2.517958e-05 | 2.480871e-05 |
| -1.995 | 4.840 | -27.63 | 2.500887e-05 | 2.344908e-05 | 2.600104e-05 | 2.715691e-05 | 2.694124e-05 | 2.659712e-05 | 2.66932e-05 | 1.881279e-05 | 1.941279e-05 | 3.466578e-05 | 2.874124e-05 | 2.554908e-05 | 2.684908e-05 | 2.522062e-05 | 2.584908e-05 | 2.724516e-05 | 2.83932e-05 | 2.868145e-05 | 2.228928e-05 | 2.422454e-05 | 3.18697e-05 | 3.183341e-05 | 3.079712e-05 | 3.079712e-05 | 2.87932e-05 | 2.87932e-05 | 2.97932e-05 | 2.993341e-05 | 2.105691e-05 | 2.034124e-05 | 2.727753e-05 | 2.654124e-05 |
| -2.355 | 5.910 | -33.039 | 2.802661e-05 | 2.604663e-05 | 2.877329e-05 | 2.988662e-05 | 3.004884e-05 | 2.958662e-05 | 3.050437e-05 | 2.123551e-05 | 2.16844e-05 | 3.920437e-05 | 3.218883e-05 | 2.859995e-05 | 2.971106e-05 | 2.788883e-05 | 2.889995e-05 | 3.039995e-05 | 3.148662e-05 | 3.299326e-05 | 2.533551e-05 | 2.607107e-05 | 3.615327e-05 | 3.579104e-05 | 3.416438e-05 | 3.416438e-05 | 3.218883e-05 | 3.218883e-05 | 3.315105e-05 | 3.343772e-05 | 2.314442e-05 | 2.280664e-05 | 3.120216e-05 | 2.972439e-05 |
| -2.775 | 8.990 | -39.789 | 3.374272e-05 | 3.085461e-05 | 3.37851e-05 | 3.529699e-05 | 3.543937e-05 | 3.529364e-05 | 3.654607e-05 | 2.470185e-05 | 2.587656e-05 | 4.571224e-05 | 3.885981e-05 | 3.423937e-05 | 3.512413e-05 | 3.371224e-05 | 3.483602e-05 | 3.633602e-05 | 3.744792e-05 | 4.049029e-05 | 2.922563e-05 | 2.931374e-05 | 4.300554e-05 | 4.279029e-05 | 4.05784e-05 | 4.05784e-05 | 3.822413e-05 | 3.822413e-05 | 3.899699e-05 | 3.935127e-05 | 2.575947e-05 | 2.552898e-05 | 3.742413e-05 | 3.473083e-05 |
3) EAS1 Geometric factors from 17 July 2021
| | | Elevation(deg) | Anode Geometric factors (cm^2 sr eV/eV) |
|---|
| Deflector Ratios |
Elevation Resolution (deg) |
(instr. look directions) |
Anode01(5.625) | Anode02(16.875) | Anode03(28.125) | Anode04(39.375) | Anode05(50.625) | Anode06(61.875) | Anode07(73.125) | Anode08(84.375) | Anode09(95.625) | Anode10(106.875) | Anode11(118.125) | Anode12(129.375) | Anode13(140.625) | Anode14(151.875) | Anode15(163.125) | Anode16(174.375) | Anode17(185.625) | Anode18(196.875) | Anode19(208.125) | Anode20(219.375) | Anode21(230.625) | Anode22(241.875) | Anode23(253.125) | Anode24(264.375) | Anode25(275.625) | Anode26(286.875) | Anode27(298.125) | Anode28(309.375) | Anode29(320.625) | Anode30(331.875) | Anode31(343.125) | Anode32(354.375) |
|---|
| +2.758 | 11.32 | 39.34 | 3.653099e-05 | 3.498178e-05 | 3.764408e-05 | 3.948178e-05 | 3.970798e-05 | 4.127188e-05 | 4.221629e-05 | 2.565239e-05 | 3.284728e-05 | 4.924728e-05 | 4.160798e-05 | 3.703099e-05 | 3.818019e-05 | 3.963577e-05 | 4.103418e-05 | 4.229808e-05 | 4.227028e-05 | 4.585878e-05 | 2.969329e-05 | 3.227859e-05 | 4.716869e-05 | 4.633099e-05 | 4.284104e-05 | 4.284104e-05 | 3.896243e-05 | 3.896243e-05 | 4.204249e-05 | 4.253258e-05 | 2.7277e-05 | 2.62508e-05 | 4.009488e-05 | 3.744249e-05 |
| +2.122 | 9.02814 | 29.17 | 3.045855e-05 | 2.901656e-05 | 3.155855e-05 | 3.305524e-05 | 3.32812e-05 | 3.382318e-05 | 3.447179e-05 | 2.220994e-05 | 2.60812e-05 | 4.032318e-05 | 3.510385e-05 | 3.151987e-05 | 3.213921e-05 | 3.218451e-05 | 3.296186e-05 | 3.446848e-05 | 3.494252e-05 | 3.616848e-05 | 2.597457e-05 | 2.895524e-05 | 3.887511e-05 | 3.961987e-05 | 3.682318e-05 | 3.682318e-05 | 3.48359e-05 | 3.48359e-05 | 3.59812e-05 | 3.648451e-05 | 2.41359e-05 | 2.345524e-05 | 3.306848e-05 | 3.163921e-05 |
| +1.556 | 7.49509 | 20.91 | 2.716024e-05 | 2.571558e-05 | 2.777093e-05 | 2.985442e-05 | 2.935442e-05 | 2.947093e-05 | 2.870396e-05 | 2.008256e-05 | 2.197093e-05 | 3.646024e-05 | 3.109907e-05 | 2.769326e-05 | 2.839326e-05 | 2.767093e-05 | 2.858745e-05 | 2.971558e-05 | 3.060977e-05 | 3.07428e-05 | 2.267093e-05 | 2.56321e-05 | 3.288745e-05 | 3.542628e-05 | 3.314372e-05 | 3.314372e-05 | 3.173791e-05 | 3.173791e-05 | 3.19321e-05 | 3.172628e-05 | 2.140489e-05 | 2.068256e-05 | 2.831558e-05 | 2.807675e-05 |
| +1.059 | 6.35776 | 13.98 | 2.530001e-05 | 2.370001e-05 | 2.611429e-05 | 2.754287e-05 | 2.695715e-05 | 2.704287e-05 | 2.621429e-05 | 1.787144e-05 | 1.971429e-05 | 3.374287e-05 | 2.868572e-05 | 2.560001e-05 | 2.612858e-05 | 2.541429e-05 | 2.681429e-05 | 2.761429e-05 | 2.762858e-05 | 2.847143e-05 | 2.015715e-05 | 2.384286e-05 | 3.034287e-05 | 3.284287e-05 | 3.105715e-05 | 3.105715e-05 | 2.894287e-05 | 2.894287e-05 | 2.937144e-05 | 2.948572e-05 | 1.978572e-05 | 1.932858e-05 | 2.587144e-05 | 2.618572e-05 |
| +0.623 | 5.4803 | 8.06 | 2.376629e-05 | 2.264262e-05 | 2.504735e-05 | 2.596629e-05 | 2.612841e-05 | 2.622841e-05 | 2.43805e-05 | 1.693315e-05 | 1.768997e-05 | 3.216156e-05 | 2.754262e-05 | 2.387576e-05 | 2.532841e-05 | 2.396156e-05 | 2.47947e-05 | 2.616156e-05 | 2.682368e-05 | 2.610891e-05 | 1.942368e-05 | 2.303315e-05 | 2.886156e-05 | 3.136156e-05 | 3.003788e-05 | 3.003788e-05 | 2.783788e-05 | 2.783788e-05 | 2.881421e-05 | 2.73947e-05 | 1.940947e-05 | 1.815209e-05 | 2.474262e-05 | 2.504735e-05 |
| +0.238 | 4.81747 | 2.91 | 2.333823e-05 | 2.169557e-05 | 2.400513e-05 | 2.544778e-05 | 2.492424e-05 | 2.502424e-05 | 2.348601e-05 | 1.608601e-05 | 1.714778e-05 | 3.110513e-05 | 2.641468e-05 | 2.398089e-05 | 2.385291e-05 | 2.317646e-05 | 2.424778e-05 | 2.519557e-05 | 2.625734e-05 | 2.53669e-05 | 1.867646e-05 | 2.191468e-05 | 2.75338e-05 | 3.093823e-05 | 2.864335e-05 | 2.864335e-05 | 2.707646e-05 | 2.707646e-05 | 2.699114e-05 | 2.684778e-05 | 1.849557e-05 | 1.755734e-05 | 2.34338e-05 | 2.418601e-05 |
| -0.104 | 4.32265 | -1.66 | 2.299783e-05 | 2.152446e-05 | 2.314458e-05 | 2.479566e-05 | 2.48e-05 | 2.459783e-05 | 2.256904e-05 | 1.607554e-05 | 1.664675e-05 | 3.130217e-05 | 2.584675e-05 | 2.301795e-05 | 2.377554e-05 | 2.264675e-05 | 2.344458e-05 | 2.487337e-05 | 2.544458e-05 | 2.462012e-05 | 1.875108e-05 | 2.142229e-05 | 2.717337e-05 | 2.94647e-05 | 2.812229e-05 | 2.812229e-05 | 2.647121e-05 | 2.647121e-05 | 2.725325e-05 | 2.612012e-05 | 1.84e-05 | 1.734892e-05 | 2.337554e-05 | 2.364675e-05 |
| -0.416 | 3.99148 | -5.82 | 2.279378e-05 | 2.134066e-05 | 2.29e-05 | 2.46e-05 | 2.495934e-05 | 2.423444e-05 | 2.261867e-05 | 1.61e-05 | 1.660622e-05 | 3.097511e-05 | 2.559378e-05 | 2.291245e-05 | 2.369378e-05 | 2.255311e-05 | 2.325311e-05 | 2.458755e-05 | 2.504066e-05 | 2.445311e-05 | 1.853444e-05 | 2.151245e-05 | 2.694066e-05 | 2.910622e-05 | 2.778755e-05 | 2.778755e-05 | 2.645934e-05 | 2.645934e-05 | 2.713444e-05 | 2.595311e-05 | 1.829378e-05 | 1.756556e-05 | 2.355934e-05 | 2.35e-05 |
| -0.705 | 3.77194 | -9.7 | 2.27e-05 | 2.117442e-05 | 2.297674e-05 | 2.457442e-05 | 2.49721e-05 | 2.405116e-05 | 2.292558e-05 | 1.62279e-05 | 1.664884e-05 | 3.077906e-05 | 2.565348e-05 | 2.29721e-05 | 2.352326e-05 | 2.257442e-05 | 2.322326e-05 | 2.44e-05 | 2.495116e-05 | 2.452558e-05 | 1.84279e-05 | 2.162326e-05 | 2.703022e-05 | 2.92e-05 | 2.76e-05 | 2.76e-05 | 2.64721e-05 | 2.64721e-05 | 2.69e-05 | 2.6e-05 | 1.82e-05 | 1.772326e-05 | 2.375116e-05 | 2.352558e-05 |
| -0.981 | 3.68205 | -13.43 | 2.27e-05 | 2.110456e-05 | 2.318631e-05 | 2.450456e-05 | 2.462282e-05 | 2.419087e-05 | 2.299544e-05 | 1.657718e-05 | 1.650913e-05 | 3.126805e-05 | 2.607262e-05 | 2.262282e-05 | 2.331369e-05 | 2.250456e-05 | 2.301369e-05 | 2.44e-05 | 2.509087e-05 | 2.459544e-05 | 1.877718e-05 | 2.141369e-05 | 2.765892e-05 | 2.92e-05 | 2.76e-05 | 2.76e-05 | 2.612282e-05 | 2.612282e-05 | 2.69e-05 | 2.6e-05 | 1.82e-05 | 1.751369e-05 | 2.389087e-05 | 2.359544e-05 |
| -1.252 | 3.71163 | -17.13 | 2.238242e-05 | 2.129055e-05 | 2.339055e-05 | 2.469055e-05 | 2.479055e-05 | 2.42e-05 | 2.312703e-05 | 1.685406e-05 | 1.713516e-05 | 3.142703e-05 | 2.603648e-05 | 2.317165e-05 | 2.380813e-05 | 2.269055e-05 | 2.363516e-05 | 2.484461e-05 | 2.54811e-05 | 2.479055e-05 | 1.899055e-05 | 2.197165e-05 | 2.801758e-05 | 2.932703e-05 | 2.810813e-05 | 2.810813e-05 | 2.660813e-05 | 2.660813e-05 | 2.709055e-05 | 2.657165e-05 | 1.883516e-05 | 1.781758e-05 | 2.421758e-05 | 2.391758e-05 |
| -1.527 | 3.89929 | -20.94 | 2.277721e-05 | 2.165654e-05 | 2.391688e-05 | 2.521688e-05 | 2.50924e-05 | 2.455274e-05 | 2.387342e-05 | 1.728861e-05 | 1.782067e-05 | 3.185274e-05 | 2.641688e-05 | 2.375654e-05 | 2.458101e-05 | 2.334515e-05 | 2.41924e-05 | 2.535654e-05 | 2.611688e-05 | 2.557342e-05 | 1.964515e-05 | 2.271688e-05 | 2.874515e-05 | 2.965654e-05 | 2.875274e-05 | 2.875274e-05 | 2.706034e-05 | 2.706034e-05 | 2.758481e-05 | 2.734894e-05 | 1.945654e-05 | 1.828861e-05 | 2.475274e-05 | 2.442067e-05 |
| -1.813 | 4.22912 | -25 | 2.406947e-05 | 2.228601e-05 | 2.488271e-05 | 2.617278e-05 | 2.559925e-05 | 2.538932e-05 | 2.539594e-05 | 1.796286e-05 | 1.856286e-05 | 3.274225e-05 | 2.739925e-05 | 2.438601e-05 | 2.568601e-05 | 2.454962e-05 | 2.468601e-05 | 2.599263e-05 | 2.709594e-05 | 2.711579e-05 | 2.090255e-05 | 2.364301e-05 | 3.003564e-05 | 3.031248e-05 | 2.958932e-05 | 2.958932e-05 | 2.749594e-05 | 2.749594e-05 | 2.849594e-05 | 2.841248e-05 | 2.007278e-05 | 1.899925e-05 | 2.56224e-05 | 2.519925e-05 |
| -2.124 | 4.82598 | -29.53 | 2.568752e-05 | 2.428931e-05 | 2.680896e-05 | 2.786788e-05 | 2.791075e-05 | 2.746967e-05 | 2.763039e-05 | 1.942681e-05 | 2.002681e-05 | 3.60554e-05 | 2.971075e-05 | 2.638931e-05 | 2.768931e-05 | 2.570537e-05 | 2.668931e-05 | 2.815003e-05 | 2.933039e-05 | 2.981254e-05 | 2.32911e-05 | 2.464466e-05 | 3.319469e-05 | 3.293218e-05 | 3.166967e-05 | 3.166967e-05 | 2.973039e-05 | 2.973039e-05 | 3.073039e-05 | 3.103218e-05 | 2.176788e-05 | 2.131075e-05 | 2.847325e-05 | 2.751075e-05 |
| -2.470 | 5.76057 | -34.82 | 2.948412e-05 | 2.698973e-05 | 2.988786e-05 | 3.108693e-05 | 3.122057e-05 | 3.078693e-05 | 3.224768e-05 | 2.23215e-05 | 2.265608e-05 | 4.094768e-05 | 3.361777e-05 | 2.988599e-05 | 3.085421e-05 | 2.931777e-05 | 3.018599e-05 | 3.168599e-05 | 3.268693e-05 | 3.487945e-05 | 2.64215e-05 | 2.695702e-05 | 3.778226e-05 | 3.744861e-05 | 3.565048e-05 | 3.565048e-05 | 3.361777e-05 | 3.361777e-05 | 3.455141e-05 | 3.475235e-05 | 2.385888e-05 | 2.349253e-05 | 3.271683e-05 | 3.095328e-05 |
| -2.867 | 7.3106 | -41.36 | 3.513346e-05 | 3.236125e-05 | 3.519902e-05 | 3.68268e-05 | 3.699236e-05 | 3.698571e-05 | 3.777455e-05 | 2.53045e-05 | 2.701232e-05 | 4.719569e-05 | 4.080684e-05 | 3.579236e-05 | 3.672348e-05 | 3.519569e-05 | 3.655127e-05 | 3.805127e-05 | 3.927905e-05 | 4.234461e-05 | 3.006007e-05 | 3.003229e-05 | 4.48135e-05 | 4.464461e-05 | 4.231682e-05 | 4.231682e-05 | 3.982348e-05 | 3.982348e-05 | 4.05268e-05 | 4.102015e-05 | 2.633894e-05 | 2.620117e-05 | 3.902348e-05 | 3.600567e-05 |
4) EAS2 Geometric factors until 18 August 2020
| | | Elevation(deg) | Anode Geometric factors (cm^2 sr eV/eV) |
|---|
| Deflector Ratios |
Elevation Resolution (deg) |
(instr. look directions) |
Anode01(5.625) | Anode02(16.875) | Anode03(28.125) | Anode04(39.375) | Anode05(50.625) | Anode06(61.875) | Anode07(73.125) | Anode08(84.375) | Anode09(95.625) | Anode10(106.875) | Anode11(118.125) | Anode12(129.375) | Anode13(140.625) | Anode14(151.875) | Anode15(163.125) | Anode16(174.375) | Anode17(185.625) | Anode18(196.875) | Anode19(208.125) | Anode20(219.375) | Anode21(230.625) | Anode22(241.875) | Anode23(253.125) | Anode24(264.375) | Anode25(275.625) | Anode26(286.875) | Anode27(298.125) | Anode28(309.375) | Anode29(320.625) | Anode30(331.875) | Anode31(343.125) | Anode32(354.375) |
|---|
| +3.0 | 9.808 | 39.04479 | 3.897789e-05 | 3.735478e-05 | 3.676248e-05 | 3.672496e-05 | 3.588844e-05 | 3.654707e-05 | 3.574322e-05 | 2.266633e-05 | 2.795193e-05 | 4.282881e-05 | 4.015293e-05 | 4.029515e-05 | 3.873267e-05 | 4.145478e-05 | 4.146918e-05 | 4.000955e-05 | 3.97923e-05 | 3.849515e-05 | 2.485478e-05 | 2.191826e-05 | 3.602981e-05 | 3.465578e-05 | 3.491444e-05 | 3.491444e-05 | 3.409652e-05 | 3.409652e-05 | 3.515193e-05 | 3.391926e-05 | 2.232981e-05 | 2.221926e-05 | 3.649615e-05 | 3.733752e-05 |
| +2.6 | 7.705 | 28.41125 | 3.748942e-05 | 3.528942e-05 | 3.568906e-05 | 3.447337e-05 | 3.51e-05 | 3.626314e-05 | 3.562046e-05 | 2.288942e-05 | 2.574197e-05 | 3.837301e-05 | 4.053651e-05 | 4.028395e-05 | 4.065256e-05 | 4.02e-05 | 3.979453e-05 | 4.04157e-05 | 3.778942e-05 | 3.705256e-05 | 2.357337e-05 | 2.228942e-05 | 3.494197e-05 | 3.363139e-05 | 3.350511e-05 | 3.350511e-05 | 3.32157e-05 | 3.32157e-05 | 3.394709e-05 | 3.094744e-05 | 2.133139e-05 | 2.173104e-05 | 3.425767e-05 | 3.593651e-05 |
| +2.2 | 6.846 | 19.57604 | 3.508002e-05 | 3.24531e-05 | 3.259233e-05 | 3.357077e-05 | 3.441693e-05 | 3.551693e-05 | 3.266078e-05 | 2.193155e-05 | 2.47877e-05 | 3.720999e-05 | 3.974153e-05 | 4.016845e-05 | 4.116845e-05 | 3.960231e-05 | 3.927077e-05 | 3.916078e-05 | 3.717308e-05 | 3.57754e-05 | 2.070694e-05 | 2.175847e-05 | 3.253617e-05 | 3.257308e-05 | 3.317077e-05 | 3.317077e-05 | 3.068002e-05 | 3.068002e-05 | 3.214616e-05 | 3.01754e-05 | 2.07e-05 | 1.879001e-05 | 3.170694e-05 | 3.445847e-05 |
| +1.8 | 6.019 | 11.76466 | 3.34523e-05 | 3.247615e-05 | 3.191466e-05 | 3.312298e-05 | 3.411926e-05 | 3.569453e-05 | 3.325689e-05 | 2.243304e-05 | 2.403851e-05 | 3.692385e-05 | 3.85954e-05 | 3.783764e-05 | 3.925689e-05 | 3.913677e-05 | 3.903304e-05 | 3.792845e-05 | 3.771926e-05 | 3.453304e-05 | 2.161006e-05 | 2.050547e-05 | 3.296149e-05 | 3.298994e-05 | 3.216696e-05 | 3.216696e-05 | 3.176696e-05 | 3.176696e-05 | 3.171838e-05 | 2.898534e-05 | 2.185689e-05 | 1.812845e-05 | 3.057987e-05 | 3.236696e-05 |
| +1.4 | 4.998 | 5.075471 | 3.311886e-05 | 3.203772e-05 | 3.273586e-05 | 3.141886e-05 | 3.368487e-05 | 3.353958e-05 | 3.193958e-05 | 2.199057e-05 | 2.425658e-05 | 3.663772e-05 | 3.903586e-05 | 3.767928e-05 | 3.793958e-05 | 3.79227e-05 | 3.763958e-05 | 3.760943e-05 | 3.692259e-05 | 3.313958e-05 | 2.237357e-05 | 2.193586e-05 | 3.238114e-05 | 3.258871e-05 | 3.188487e-05 | 3.188487e-05 | 3.134901e-05 | 3.134901e-05 | 3.045471e-05 | 2.793772e-05 | 2.121886e-05 | 1.876042e-05 | 2.896228e-05 | 3.226601e-05 |
| +1.0 | 4.168 | -0.4902551 | 3.247809e-05 | 3.108433e-05 | 3.20093e-05 | 3.148127e-05 | 3.241873e-05 | 3.259376e-05 | 3.141567e-05 | 2.205312e-05 | 2.369376e-05 | 3.666879e-05 | 3.840306e-05 | 3.873439e-05 | 3.774382e-05 | 3.841555e-05 | 3.702191e-05 | 3.764064e-05 | 3.573439e-05 | 3.224064e-05 | 2.195936e-05 | 2.205312e-05 | 3.199058e-05 | 3.269058e-05 | 3.061873e-05 | 3.061873e-05 | 3.048127e-05 | 3.048127e-05 | 3.082191e-05 | 2.745312e-05 | 2.062497e-05 | 1.895618e-05 | 2.958752e-05 | 3.225006e-05 |
| +0.6 | 3.583 | -5.196756 | 3.25325e-05 | 3.136531e-05 | 3.143266e-05 | 3.130078e-05 | 3.193359e-05 | 3.313266e-05 | 3.173375e-05 | 2.196672e-05 | 2.340063e-05 | 3.680063e-05 | 3.773297e-05 | 3.860063e-05 | 3.830063e-05 | 3.73e-05 | 3.786609e-05 | 3.736734e-05 | 3.606656e-05 | 3.249984e-05 | 2.170016e-05 | 2.160063e-05 | 3.156625e-05 | 3.183359e-05 | 3.109875e-05 | 3.109875e-05 | 3.073344e-05 | 3.073344e-05 | 3.07675e-05 | 2.769953e-05 | 2.023328e-05 | 1.803328e-05 | 2.983328e-05 | 3.31e-05 |
| +0.2 | 3.006 | -9.197664 | 3.35001e-05 | 3.302008e-05 | 3.235994e-05 | 3.033996e-05 | 3.170656e-05 | 3.401998e-05 | 3.122664e-05 | 2.191998e-05 | 2.25334e-05 | 3.59001e-05 | 3.825328e-05 | 3.78666e-05 | 3.759324e-05 | 3.72334e-05 | 3.844682e-05 | 3.657992e-05 | 3.609344e-05 | 3.269334e-05 | 2.15666e-05 | 2.074672e-05 | 3.21e-05 | 3.155994e-05 | 3.262008e-05 | 3.262008e-05 | 3.06333e-05 | 3.06333e-05 | 2.987982e-05 | 2.833996e-05 | 2.031332e-05 | 1.814662e-05 | 2.997992e-05 | 3.302008e-05 |
| -0.2 | 2.733 | -12.68246 | 3.253985e-05 | 3.225188e-05 | 3.293609e-05 | 3.072406e-05 | 3.273083e-05 | 3.421203e-05 | 3.148271e-05 | 2.211203e-05 | 2.189323e-05 | 3.493985e-05 | 3.876541e-05 | 3.850677e-05 | 3.848947e-05 | 3.659323e-05 | 3.697444e-05 | 3.734812e-05 | 3.506917e-05 | 3.262932e-05 | 2.220677e-05 | 2.023459e-05 | 3.21e-05 | 3.213609e-05 | 3.185188e-05 | 3.185188e-05 | 3.095338e-05 | 3.095338e-05 | 3.160827e-05 | 2.872406e-05 | 2.044135e-05 | 1.859474e-05 | 3.074812e-05 | 3.225188e-05 |
| -0.6 | 2.566 | -15.89963 | 3.273354e-05 | 3.19288e-05 | 3.294083e-05 | 3.138955e-05 | 3.288323e-05 | 3.381045e-05 | 3.136962e-05 | 2.225759e-05 | 2.214715e-05 | 3.441361e-05 | 3.888481e-05 | 3.868481e-05 | 3.852564e-05 | 3.696233e-05 | 3.696233e-05 | 3.706646e-05 | 3.46288e-05 | 3.294557e-05 | 2.267278e-05 | 1.971203e-05 | 3.230158e-05 | 3.199684e-05 | 3.190316e-05 | 3.190316e-05 | 3.061045e-05 | 3.061045e-05 | 3.208323e-05 | 2.907278e-05 | 2.087436e-05 | 1.88e-05 | 3.038007e-05 | 3.215917e-05 |
| -1.0 | 2.334 | -18.87484 | 3.389639e-05 | 3.198165e-05 | 3.246511e-05 | 3.228812e-05 | 3.230181e-05 | 3.291188e-05 | 3.094677e-05 | 2.236331e-05 | 2.315143e-05 | 3.425504e-05 | 3.867338e-05 | 3.847338e-05 | 3.78385e-05 | 3.817804e-05 | 3.817804e-05 | 3.590361e-05 | 3.468165e-05 | 3.357985e-05 | 2.298992e-05 | 1.918346e-05 | 3.267158e-05 | 3.125684e-05 | 3.264316e-05 | 3.264316e-05 | 2.971188e-05 | 2.971188e-05 | 3.150181e-05 | 2.938992e-05 | 2.15615e-05 | 1.88e-05 | 2.905865e-05 | 3.263489e-05 |
| -1.4 | 2.605 | -21.87371 | 3.43e-05 | 3.23079e-05 | 3.247106e-05 | 3.318159e-05 | 3.275001e-05 | 3.342107e-05 | 3.179212e-05 | 2.260527e-05 | 2.322631e-05 | 3.51237e-05 | 3.887369e-05 | 3.908422e-05 | 3.76e-05 | 3.863421e-05 | 3.846316e-05 | 3.591053e-05 | 3.524738e-05 | 3.438159e-05 | 2.289473e-05 | 1.917106e-05 | 3.225262e-05 | 3.16158e-05 | 3.266052e-05 | 3.266052e-05 | 3.056318e-05 | 3.056318e-05 | 3.195001e-05 | 3.001317e-05 | 2.176579e-05 | 1.921053e-05 | 2.969475e-05 | 3.31079e-05 |
| -1.8 | 3.030 | -25.29514 | 3.43e-05 | 3.284368e-05 | 3.276871e-05 | 3.419362e-05 | 3.38811e-05 | 3.484981e-05 | 3.351852e-05 | 2.296245e-05 | 2.275006e-05 | 3.673104e-05 | 3.934994e-05 | 4.027484e-05 | 3.76e-05 | 3.869374e-05 | 3.822503e-05 | 3.662491e-05 | 3.619987e-05 | 3.539362e-05 | 2.253755e-05 | 1.946871e-05 | 3.130013e-05 | 3.268736e-05 | 3.224381e-05 | 3.224381e-05 | 3.258723e-05 | 3.258723e-05 | 3.30811e-05 | 3.090613e-05 | 2.170626e-05 | 1.992491e-05 | 3.159975e-05 | 3.364368e-05 |
| -2.2 | 3.784 | -29.43249 | 3.46746e-05 | 3.402381e-05 | 3.461058e-05 | 3.486191e-05 | 3.393757e-05 | 3.51873e-05 | 3.35127e-05 | 2.306243e-05 | 2.301217e-05 | 3.72746e-05 | 3.996191e-05 | 4.046243e-05 | 3.859894e-05 | 3.994868e-05 | 3.788783e-05 | 3.769894e-05 | 3.798572e-05 | 3.574974e-05 | 2.28746e-05 | 2.056138e-05 | 3.301058e-05 | 3.361164e-05 | 3.288677e-05 | 3.288677e-05 | 3.354921e-05 | 3.354921e-05 | 3.351217e-05 | 3.11873e-05 | 2.251164e-05 | 2.068677e-05 | 3.254921e-05 | 3.507355e-05 |
| -2.6 | 4.964 | -34.74379 | 3.574157e-05 | 3.563507e-05 | 3.565325e-05 | 3.585455e-05 | 3.539612e-05 | 3.614157e-05 | 3.550391e-05 | 2.389481e-05 | 2.422858e-05 | 3.848183e-05 | 4.188962e-05 | 4.157533e-05 | 4.069612e-05 | 4.051299e-05 | 3.928962e-05 | 3.928183e-05 | 3.956104e-05 | 3.744287e-05 | 2.403507e-05 | 2.213507e-05 | 3.405325e-05 | 3.438052e-05 | 3.409481e-05 | 3.409481e-05 | 3.357922e-05 | 3.357922e-05 | 3.416754e-05 | 3.148701e-05 | 2.285974e-05 | 2.175455e-05 | 3.421559e-05 | 3.702209e-05 |
| -3.0 | 5.964 | -41.37884 | 3.81128e-05 | 3.711017e-05 | 3.678493e-05 | 3.696459e-05 | 3.741902e-05 | 3.668983e-05 | 3.80823e-05 | 2.489115e-05 | 2.571902e-05 | 4.005574e-05 | 4.342655e-05 | 4.348361e-05 | 4.230885e-05 | 4.130263e-05 | 4.192034e-05 | 4.112919e-05 | 4.006328e-05 | 3.965574e-05 | 2.51e-05 | 2.365574e-05 | 3.609642e-05 | 3.579378e-05 | 3.618493e-05 | 3.618493e-05 | 3.419378e-05 | 3.419378e-05 | 3.583936e-05 | 3.302165e-05 | 2.27e-05 | 2.341149e-05 | 3.651149e-05 | 3.884689e-05 |
5) EAS2 Geometric factors between 19 August 2020 and 16 July 2021
| | | Elevation(deg) | Anode Geometric factors (cm^2 sr eV/eV) |
|---|
| Deflector Ratios |
Elevation Resolution (deg) |
(instr. look directions) |
Anode01(5.625) | Anode02(16.875) | Anode03(28.125) | Anode04(39.375) | Anode05(50.625) | Anode06(61.875) | Anode07(73.125) | Anode08(84.375) | Anode09(95.625) | Anode10(106.875) | Anode11(118.125) | Anode12(129.375) | Anode13(140.625) | Anode14(151.875) | Anode15(163.125) | Anode16(174.375) | Anode17(185.625) | Anode18(196.875) | Anode19(208.125) | Anode20(219.375) | Anode21(230.625) | Anode22(241.875) | Anode23(253.125) | Anode24(264.375) | Anode25(275.625) | Anode26(286.875) | Anode27(298.125) | Anode28(309.375) | Anode29(320.625) | Anode30(331.875) | Anode31(343.125) | Anode32(354.375) |
|---|
| +2.758 | 11.00 | 39.906 | 3.901411e-05 | 3.710122e-05 | 3.660552e-05 | 3.641104e-05 | 3.574356e-05 | 3.619693e-05 | 3.534478e-05 | 2.255767e-05 | 2.797607e-05 | 4.256319e-05 | 4.050307e-05 | 3.992085e-05 | 3.851533e-05 | 4.120122e-05 | 4.108282e-05 | 3.950245e-05 | 3.96957e-05 | 3.812085e-05 | 2.460122e-05 | 2.183374e-05 | 3.609018e-05 | 3.472822e-05 | 3.502858e-05 | 3.502858e-05 | 3.416786e-05 | 3.416786e-05 | 3.517607e-05 | 3.416074e-05 | 2.239018e-05 | 2.246074e-05 | 3.644785e-05 | 3.749448e-05 |
| +2.122 | 9.220 | 29.466 | 3.754184e-05 | 3.534184e-05 | 3.607349e-05 | 3.477043e-05 | 3.51e-05 | 3.628061e-05 | 3.617963e-05 | 2.294184e-05 | 2.586429e-05 | 3.900208e-05 | 4.085104e-05 | 4.052859e-05 | 4.072245e-05 | 4.02e-05 | 3.998675e-05 | 4.050307e-05 | 3.784184e-05 | 3.712245e-05 | 2.387043e-05 | 2.234184e-05 | 3.506429e-05 | 3.380613e-05 | 3.364491e-05 | 3.364491e-05 | 3.330307e-05 | 3.330307e-05 | 3.42092e-05 | 3.087755e-05 | 2.150613e-05 | 2.223779e-05 | 3.446736e-05 | 3.625104e-05 |
| +1.556 | 7.680 | 20.979 | 3.569995e-05 | 3.319225e-05 | 3.306919e-05 | 3.352308e-05 | 3.460768e-05 | 3.570768e-05 | 3.292306e-05 | 2.214614e-05 | 2.493076e-05 | 3.690003e-05 | 3.964616e-05 | 3.995386e-05 | 4.095386e-05 | 3.976922e-05 | 3.922308e-05 | 3.942306e-05 | 3.72923e-05 | 3.606151e-05 | 2.120765e-05 | 2.185384e-05 | 3.308457e-05 | 3.26923e-05 | 3.312308e-05 | 3.312308e-05 | 3.129995e-05 | 3.129995e-05 | 3.23846e-05 | 3.046151e-05 | 2.07e-05 | 1.909997e-05 | 3.220765e-05 | 3.455384e-05 |
| +1.059 | 6.500 | 13.887 | 3.36721e-05 | 3.242829e-05 | 3.178605e-05 | 3.36e-05 | 3.404302e-05 | 3.599961e-05 | 3.327093e-05 | 2.248527e-05 | 2.392907e-05 | 3.697171e-05 | 3.868644e-05 | 3.841551e-05 | 3.967249e-05 | 3.984263e-05 | 3.921434e-05 | 3.814341e-05 | 3.752829e-05 | 3.482907e-05 | 2.117093e-05 | 2.032946e-05 | 3.305659e-05 | 3.318527e-05 | 3.21721e-05 | 3.21721e-05 | 3.141356e-05 | 3.141356e-05 | 3.208566e-05 | 2.931473e-05 | 2.181356e-05 | 1.825737e-05 | 3.122868e-05 | 3.251551e-05 |
| +0.623 | 5.580 | 7.848 | 3.331009e-05 | 3.240505e-05 | 3.255458e-05 | 3.170094e-05 | 3.447476e-05 | 3.44858e-05 | 3.283028e-05 | 2.193533e-05 | 2.474953e-05 | 3.699495e-05 | 3.887981e-05 | 3.705552e-05 | 3.883028e-05 | 3.686151e-05 | 3.853533e-05 | 3.771514e-05 | 3.807476e-05 | 3.403533e-05 | 2.253439e-05 | 2.17142e-05 | 3.225047e-05 | 3.206561e-05 | 3.266467e-05 | 3.266467e-05 | 3.226467e-05 | 3.226467e-05 | 3.058075e-05 | 2.834542e-05 | 2.143028e-05 | 1.791514e-05 | 2.873122e-05 | 3.286467e-05 |
| +0.238 | 4.900 | 2.601 | 3.293917e-05 | 3.167835e-05 | 3.287062e-05 | 3.123917e-05 | 3.287629e-05 | 3.268608e-05 | 3.108608e-05 | 2.208041e-05 | 2.371752e-05 | 3.627835e-05 | 3.917062e-05 | 3.83531e-05 | 3.708608e-05 | 3.913557e-05 | 3.678608e-05 | 3.751959e-05 | 3.575464e-05 | 3.228608e-05 | 2.214897e-05 | 2.207062e-05 | 3.256083e-05 | 3.317268e-05 | 3.107629e-05 | 3.107629e-05 | 3.040567e-05 | 3.040567e-05 | 3.040979e-05 | 2.757835e-05 | 2.103917e-05 | 1.961392e-05 | 2.932165e-05 | 3.163711e-05 |
| -0.104 | 4.390 | -2.052 | 3.221987e-05 | 3.076873e-05 | 3.146418e-05 | 3.165342e-05 | 3.224658e-05 | 3.265114e-05 | 3.173127e-05 | 2.202443e-05 | 2.375114e-05 | 3.69557e-05 | 3.791532e-05 | 3.887785e-05 | 3.826025e-05 | 3.781304e-05 | 3.728013e-05 | 3.772671e-05 | 3.587785e-05 | 3.232671e-05 | 2.187329e-05 | 2.202443e-05 | 3.161759e-05 | 3.231759e-05 | 3.044658e-05 | 3.044658e-05 | 3.065342e-05 | 3.065342e-05 | 3.108013e-05 | 2.742443e-05 | 2.039544e-05 | 1.843975e-05 | 2.970228e-05 | 3.270911e-05 |
| -0.416 | 4.050 | -6.291 | 3.285355e-05 | 3.188702e-05 | 3.169351e-05 | 3.09998e-05 | 3.183327e-05 | 3.339351e-05 | 3.157322e-05 | 2.194665e-05 | 2.315984e-05 | 3.655984e-05 | 3.787343e-05 | 3.835984e-05 | 3.805984e-05 | 3.73e-05 | 3.808682e-05 | 3.710649e-05 | 3.610669e-05 | 3.256004e-05 | 2.163996e-05 | 2.135984e-05 | 3.172678e-05 | 3.173327e-05 | 3.158033e-05 | 3.158033e-05 | 3.069331e-05 | 3.069331e-05 | 3.044645e-05 | 2.788012e-05 | 2.025335e-05 | 1.805335e-05 | 2.985335e-05 | 3.31e-05 |
| -0.705 | 3.830 | -10.242 | 3.321233e-05 | 3.278986e-05 | 3.25326e-05 | 3.045507e-05 | 3.201351e-05 | 3.407753e-05 | 3.130338e-05 | 2.197753e-05 | 2.234155e-05 | 3.561233e-05 | 3.840676e-05 | 3.805845e-05 | 3.786182e-05 | 3.704155e-05 | 3.800557e-05 | 3.681014e-05 | 3.578649e-05 | 3.267416e-05 | 2.175845e-05 | 2.059324e-05 | 3.21e-05 | 3.17326e-05 | 3.238986e-05 | 3.238986e-05 | 3.072922e-05 | 3.072922e-05 | 3.03978e-05 | 2.845507e-05 | 2.035169e-05 | 1.828091e-05 | 3.021014e-05 | 3.278986e-05 |
| -0.981 | 3.740 | -14.049 | 3.216329e-05 | 3.195064e-05 | 3.316202e-05 | 3.087468e-05 | 3.313249e-05 | 3.428734e-05 | 3.158312e-05 | 2.218734e-05 | 2.16422e-05 | 3.456329e-05 | 3.896624e-05 | 3.87578e-05 | 3.884092e-05 | 3.63422e-05 | 3.639705e-05 | 3.764936e-05 | 3.466751e-05 | 3.260422e-05 | 2.24578e-05 | 2.003376e-05 | 3.21e-05 | 3.236202e-05 | 3.155064e-05 | 3.155064e-05 | 3.10789e-05 | 3.10789e-05 | 3.228607e-05 | 2.887468e-05 | 2.049156e-05 | 1.877046e-05 | 3.104936e-05 | 3.195064e-05 |
| -1.252 | 3.790 | -17.82 | 3.348411e-05 | 3.196291e-05 | 3.263377e-05 | 3.196954e-05 | 3.250795e-05 | 3.323046e-05 | 3.109669e-05 | 2.232583e-05 | 2.279536e-05 | 3.431126e-05 | 3.874834e-05 | 3.854834e-05 | 3.808212e-05 | 3.774702e-05 | 3.774702e-05 | 3.631589e-05 | 3.466291e-05 | 3.335497e-05 | 2.287748e-05 | 1.937086e-05 | 3.25404e-05 | 3.15192e-05 | 3.23808e-05 | 3.23808e-05 | 3.003046e-05 | 3.003046e-05 | 3.170795e-05 | 2.927748e-05 | 2.131788e-05 | 1.88e-05 | 2.952715e-05 | 3.246623e-05 |
| -1.527 | 3.990 | -21.726 | 3.43e-05 | 3.228477e-05 | 3.24582e-05 | 3.31379e-05 | 3.270118e-05 | 3.335938e-05 | 3.171759e-05 | 2.258985e-05 | 2.324687e-05 | 3.505431e-05 | 3.885313e-05 | 3.903282e-05 | 3.76e-05 | 3.863164e-05 | 3.847344e-05 | 3.587969e-05 | 3.520626e-05 | 3.43379e-05 | 2.291015e-05 | 1.91582e-05 | 3.229374e-05 | 3.156954e-05 | 3.267851e-05 | 3.267851e-05 | 3.047579e-05 | 3.047579e-05 | 3.190118e-05 | 2.997461e-05 | 2.176836e-05 | 1.917969e-05 | 2.961251e-05 | 3.308477e-05 |
| -1.813 | 4.340 | -25.884 | 3.432273e-05 | 3.296818e-05 | 3.290985e-05 | 3.433409e-05 | 3.399621e-05 | 3.501136e-05 | 3.368864e-05 | 2.300379e-05 | 2.271894e-05 | 3.692273e-05 | 3.943409e-05 | 4.040379e-05 | 3.766061e-05 | 3.877576e-05 | 3.818106e-05 | 3.676061e-05 | 3.640228e-05 | 3.551515e-05 | 2.252273e-05 | 1.95644e-05 | 3.130985e-05 | 3.284924e-05 | 3.224167e-05 | 3.224167e-05 | 3.284546e-05 | 3.284546e-05 | 3.321894e-05 | 3.101136e-05 | 2.174924e-05 | 2.004167e-05 | 3.184546e-05 | 3.378334e-05 |
| -2.124 | 4.990 | -30.546 | 3.478502e-05 | 3.435506e-05 | 3.514427e-05 | 3.502753e-05 | 3.391916e-05 | 3.524251e-05 | 3.345749e-05 | 2.308084e-05 | 2.310418e-05 | 3.738502e-05 | 4.012753e-05 | 4.048084e-05 | 3.889339e-05 | 4.031674e-05 | 3.779582e-05 | 3.799339e-05 | 3.84826e-05 | 3.582335e-05 | 2.298502e-05 | 2.087423e-05 | 3.354427e-05 | 3.385088e-05 | 3.308921e-05 | 3.308921e-05 | 3.377004e-05 | 3.377004e-05 | 3.360418e-05 | 3.124251e-05 | 2.275088e-05 | 2.088921e-05 | 3.277004e-05 | 3.547841e-05 |
| -2.470 | 6.020 | -36 | 3.608952e-05 | 3.602169e-05 | 3.563392e-05 | 3.612518e-05 | 3.60147e-05 | 3.648952e-05 | 3.63738e-05 | 2.422344e-05 | 2.465386e-05 | 3.888777e-05 | 4.254687e-05 | 4.201994e-05 | 4.13147e-05 | 4.043566e-05 | 3.994687e-05 | 3.968777e-05 | 3.979301e-05 | 3.808079e-05 | 2.442169e-05 | 2.252169e-05 | 3.403392e-05 | 3.449651e-05 | 3.442344e-05 | 3.442344e-05 | 3.340524e-05 | 3.340524e-05 | 3.436084e-05 | 3.156434e-05 | 2.280175e-05 | 2.202518e-05 | 3.47182e-05 | 3.748603e-05 |
| -2.867 | 5.980 | -42.768 | 3.873098e-05 | 3.728964e-05 | 3.73034e-05 | 3.712412e-05 | 3.755861e-05 | 3.651036e-05 | 3.816206e-05 | 2.493103e-05 | 2.585861e-05 | 4.025515e-05 | 4.330691e-05 | 4.378273e-05 | 4.226897e-05 | 4.174134e-05 | 4.227928e-05 | 4.144825e-05 | 4.000345e-05 | 3.985515e-05 | 2.51e-05 | 2.385515e-05 | 3.701371e-05 | 3.627237e-05 | 3.67034e-05 | 3.67034e-05 | 3.467237e-05 | 3.467237e-05 | 3.633789e-05 | 3.359995e-05 | 2.27e-05 | 2.381031e-05 | 3.691031e-05 | 3.908618e-05 |
6) EAS2 Geometric factors from17 July 2021
| | | Elevation(deg) | Anode Geometric factors (cm^2 sr eV/eV) |
|---|
| Deflector Ratios |
Elevation Resolution (deg) |
(instr. look directions) |
Anode01(5.625) | Anode02(16.875) | Anode03(28.125) | Anode04(39.375) | Anode05(50.625) | Anode06(61.875) | Anode07(73.125) | Anode08(84.375) | Anode09(95.625) | Anode10(106.875) | Anode11(118.125) | Anode12(129.375) | Anode13(140.625) | Anode14(151.875) | Anode15(163.125) | Anode16(174.375) | Anode17(185.625) | Anode18(196.875) | Anode19(208.125) | Anode20(219.375) | Anode21(230.625) | Anode22(241.875) | Anode23(253.125) | Anode24(264.375) | Anode25(275.625) | Anode26(286.875) | Anode27(298.125) | Anode28(309.375) | Anode29(320.625) | Anode30(331.875) | Anode31(343.125) | Anode32(354.375) |
|---|
| +2.702 | 12.12 | 38.94 | 3.897348e-05 | 3.738563e-05 | 3.678158e-05 | 3.676316e-05 | 3.590607e-05 | 3.658968e-05 | 3.57917e-05 | 2.267956e-05 | 2.794899e-05 | 4.286113e-05 | 4.011032e-05 | 4.034069e-05 | 3.875911e-05 | 4.148563e-05 | 4.15162e-05 | 4.007126e-05 | 3.980405e-05 | 3.854069e-05 | 2.488563e-05 | 2.192854e-05 | 3.602247e-05 | 3.464696e-05 | 3.490055e-05 | 3.490055e-05 | 3.408784e-05 | 3.408784e-05 | 3.514899e-05 | 3.388988e-05 | 2.232247e-05 | 2.218988e-05 | 3.650202e-05 | 3.731842e-05 |
| +2.044 | 9.26699 | 28.25 | 3.74814e-05 | 3.52814e-05 | 3.563029e-05 | 3.442795e-05 | 3.51e-05 | 3.626047e-05 | 3.553497e-05 | 2.28814e-05 | 2.572327e-05 | 3.827684e-05 | 4.048842e-05 | 4.024655e-05 | 4.064187e-05 | 4.02e-05 | 3.976515e-05 | 4.040234e-05 | 3.77814e-05 | 3.704187e-05 | 2.352795e-05 | 2.22814e-05 | 3.492327e-05 | 3.360468e-05 | 3.348374e-05 | 3.348374e-05 | 3.320234e-05 | 3.320234e-05 | 3.390702e-05 | 3.095813e-05 | 2.130468e-05 | 2.165357e-05 | 3.422561e-05 | 3.588842e-05 |
| +1.479 | 7.52202 | 19.86 | 3.52055e-05 | 3.260271e-05 | 3.268884e-05 | 3.356112e-05 | 3.445554e-05 | 3.555554e-05 | 3.271386e-05 | 2.197498e-05 | 2.481665e-05 | 3.714725e-05 | 3.972223e-05 | 4.012502e-05 | 4.112502e-05 | 3.96361e-05 | 3.926112e-05 | 3.921386e-05 | 3.719721e-05 | 3.583331e-05 | 2.080829e-05 | 2.177777e-05 | 3.264717e-05 | 3.259721e-05 | 3.316112e-05 | 3.316112e-05 | 3.08055e-05 | 3.08055e-05 | 3.219442e-05 | 3.023331e-05 | 2.07e-05 | 1.885275e-05 | 3.180829e-05 | 3.447777e-05 |
| +0.994 | 6.22251 | 12.99 | 3.349679e-05 | 3.249839e-05 | 3.171446e-05 | 3.356787e-05 | 3.400803e-05 | 3.607269e-05 | 3.339036e-05 | 2.258875e-05 | 2.381607e-05 | 3.690161e-05 | 3.850643e-05 | 3.808233e-05 | 3.939036e-05 | 3.984859e-05 | 3.918875e-05 | 3.799518e-05 | 3.760803e-05 | 3.468875e-05 | 2.132089e-05 | 2.012731e-05 | 3.318393e-05 | 3.327911e-05 | 3.201125e-05 | 3.201125e-05 | 3.161125e-05 | 3.161125e-05 | 3.207429e-05 | 2.918554e-05 | 2.199036e-05 | 1.819518e-05 | 3.115823e-05 | 3.221125e-05 |
| +0.578 | 5.24859 | 7.25 | 3.327676e-05 | 3.235353e-05 | 3.261743e-05 | 3.157676e-05 | 3.439544e-05 | 3.428963e-05 | 3.268963e-05 | 2.191162e-05 | 2.473029e-05 | 3.695353e-05 | 3.891743e-05 | 3.708713e-05 | 3.868963e-05 | 3.685684e-05 | 3.838963e-05 | 3.768838e-05 | 3.794897e-05 | 3.388963e-05 | 2.257096e-05 | 2.181743e-05 | 3.222324e-05 | 3.207552e-05 | 3.259544e-05 | 3.259544e-05 | 3.217801e-05 | 3.217801e-05 | 3.049419e-05 | 2.825353e-05 | 2.137676e-05 | 1.801037e-05 | 2.864647e-05 | 3.281868e-05 |
| +0.219 | 4.54308 | 2.35 | 3.292095e-05 | 3.16419e-05 | 3.288429e-05 | 3.122095e-05 | 3.279427e-05 | 3.25995e-05 | 3.09995e-05 | 2.208953e-05 | 2.366284e-05 | 3.62419e-05 | 3.918429e-05 | 3.842144e-05 | 3.69995e-05 | 3.92586e-05 | 3.66995e-05 | 3.751047e-05 | 3.563616e-05 | 3.21995e-05 | 2.212619e-05 | 2.208429e-05 | 3.257905e-05 | 3.323192e-05 | 3.099427e-05 | 3.099427e-05 | 3.030998e-05 | 3.030998e-05 | 3.040524e-05 | 2.75419e-05 | 2.102095e-05 | 1.97005e-05 | 2.93581e-05 | 3.157332e-05 |
| -0.096 | 4.02478 | -1.93 | 3.224004e-05 | 3.079339e-05 | 3.150676e-05 | 3.163997e-05 | 3.226003e-05 | 3.264666e-05 | 3.170661e-05 | 2.202667e-05 | 2.374666e-05 | 3.693328e-05 | 3.795342e-05 | 3.886664e-05 | 3.821991e-05 | 3.78601e-05 | 3.725996e-05 | 3.771999e-05 | 3.586664e-05 | 3.231999e-05 | 2.188001e-05 | 2.202667e-05 | 3.164673e-05 | 3.234673e-05 | 3.046003e-05 | 3.046003e-05 | 3.063997e-05 | 3.063997e-05 | 3.105996e-05 | 2.742667e-05 | 2.041337e-05 | 1.848009e-05 | 2.969331e-05 | 3.267325e-05 |
| -0.379 | 3.67636 | -5.78 | 3.270362e-05 | 3.164339e-05 | 3.157169e-05 | 3.114035e-05 | 3.188012e-05 | 3.327169e-05 | 3.164819e-05 | 2.195602e-05 | 2.327228e-05 | 3.667228e-05 | 3.780784e-05 | 3.847228e-05 | 3.817228e-05 | 3.73e-05 | 3.798374e-05 | 3.722831e-05 | 3.608795e-05 | 3.253193e-05 | 2.166807e-05 | 2.147228e-05 | 3.165181e-05 | 3.178012e-05 | 3.135544e-05 | 3.135544e-05 | 3.071205e-05 | 3.071205e-05 | 3.059638e-05 | 2.779579e-05 | 2.024398e-05 | 1.804398e-05 | 2.984398e-05 | 3.31e-05 |
| -0.642 | 3.49436 | -9.37 | 3.345261e-05 | 3.298209e-05 | 3.238843e-05 | 3.035895e-05 | 3.175721e-05 | 3.402948e-05 | 3.12393e-05 | 2.192948e-05 | 2.250174e-05 | 3.585261e-05 | 3.827861e-05 | 3.789826e-05 | 3.763756e-05 | 3.720174e-05 | 3.837401e-05 | 3.661791e-05 | 3.604279e-05 | 3.269017e-05 | 2.159826e-05 | 2.072139e-05 | 3.21e-05 | 3.158843e-05 | 3.258209e-05 | 3.258209e-05 | 3.064913e-05 | 3.064913e-05 | 2.996529e-05 | 2.835895e-05 | 2.031965e-05 | 1.816878e-05 | 3.001791e-05 | 3.298209e-05 |
| -0.895 | 3.44469 | -12.84 | 3.249644e-05 | 3.221715e-05 | 3.296214e-05 | 3.074142e-05 | 3.277713e-05 | 3.422071e-05 | 3.149428e-05 | 2.212071e-05 | 2.186429e-05 | 3.489644e-05 | 3.878857e-05 | 3.853571e-05 | 3.852999e-05 | 3.656429e-05 | 3.690787e-05 | 3.738285e-05 | 3.502287e-05 | 3.262643e-05 | 2.223571e-05 | 2.021143e-05 | 3.21e-05 | 3.216214e-05 | 3.181715e-05 | 3.181715e-05 | 3.096785e-05 | 3.096785e-05 | 3.168641e-05 | 2.874142e-05 | 2.044714e-05 | 1.861499e-05 | 3.078285e-05 | 3.221715e-05 |
| -1.146 | 3.51875 | -16.32 | 3.289784e-05 | 3.193627e-05 | 3.287361e-05 | 3.151651e-05 | 3.280108e-05 | 3.368349e-05 | 3.130988e-05 | 2.227253e-05 | 2.228904e-05 | 3.43912e-05 | 3.885494e-05 | 3.865494e-05 | 3.842855e-05 | 3.71341e-05 | 3.71341e-05 | 3.690216e-05 | 3.463627e-05 | 3.303518e-05 | 2.271759e-05 | 1.963735e-05 | 3.235386e-05 | 3.189229e-05 | 3.200771e-05 | 3.200771e-05 | 3.048349e-05 | 3.048349e-05 | 3.200108e-05 | 2.911759e-05 | 2.097145e-05 | 1.88e-05 | 3.019337e-05 | 3.222639e-05 |
| -1.405 | 3.77342 | -19.97 | 3.43e-05 | 3.200979e-05 | 3.230544e-05 | 3.261849e-05 | 3.212066e-05 | 3.26261e-05 | 3.083154e-05 | 2.240652e-05 | 2.34913e-05 | 3.422936e-05 | 3.86087e-05 | 3.842175e-05 | 3.76e-05 | 3.860109e-05 | 3.859565e-05 | 3.551305e-05 | 3.47174e-05 | 3.381849e-05 | 2.309348e-05 | 1.900544e-05 | 3.27826e-05 | 3.101957e-05 | 3.289239e-05 | 3.289239e-05 | 2.943697e-05 | 2.943697e-05 | 3.132066e-05 | 2.951631e-05 | 2.179891e-05 | 1.881305e-05 | 2.86348e-05 | 3.280979e-05 |
| -1.683 | 4.22656 | -23.97 | 3.43e-05 | 3.263617e-05 | 3.265343e-05 | 3.380165e-05 | 3.344302e-05 | 3.429645e-05 | 3.284988e-05 | 2.282411e-05 | 2.293452e-05 | 3.61085e-05 | 3.916548e-05 | 3.981371e-05 | 3.76e-05 | 3.867069e-05 | 3.831726e-05 | 3.634822e-05 | 3.583097e-05 | 3.500165e-05 | 2.267589e-05 | 1.935343e-05 | 3.166903e-05 | 3.227234e-05 | 3.24052e-05 | 3.24052e-05 | 3.18033e-05 | 3.18033e-05 | 3.264302e-05 | 3.056028e-05 | 2.172931e-05 | 1.964822e-05 | 3.086193e-05 | 3.343617e-05 |
| -1.995 | 4.97045 | -28.57 | 3.458908e-05 | 3.376723e-05 | 3.419721e-05 | 3.473362e-05 | 3.395182e-05 | 3.514454e-05 | 3.355546e-05 | 2.304818e-05 | 2.29409e-05 | 3.718908e-05 | 3.983362e-05 | 4.044818e-05 | 3.837087e-05 | 3.966359e-05 | 3.79591e-05 | 3.747087e-05 | 3.760085e-05 | 3.569272e-05 | 2.278908e-05 | 2.031905e-05 | 3.259721e-05 | 3.342633e-05 | 3.272998e-05 | 3.272998e-05 | 3.337815e-05 | 3.337815e-05 | 3.34409e-05 | 3.114454e-05 | 2.232633e-05 | 2.052998e-05 | 3.237815e-05 | 3.475995e-05 |
| -2.355 | 6.14101 | -34.13 | 3.557155e-05 | 3.544617e-05 | 3.566269e-05 | 3.572232e-05 | 3.509388e-05 | 3.597155e-05 | 3.507889e-05 | 2.373425e-05 | 2.402079e-05 | 3.828348e-05 | 4.156849e-05 | 4.13581e-05 | 4.039388e-05 | 4.055077e-05 | 3.896849e-05 | 3.908348e-05 | 3.94477e-05 | 3.713118e-05 | 2.384617e-05 | 2.194617e-05 | 3.406269e-05 | 3.432385e-05 | 3.393425e-05 | 3.393425e-05 | 3.366422e-05 | 3.366422e-05 | 3.407309e-05 | 3.144923e-05 | 2.288807e-05 | 2.162232e-05 | 3.397002e-05 | 3.679541e-05 |
| -2.775 | 7.79454 | -41.1 | 3.798872e-05 | 3.707414e-05 | 3.668086e-05 | 3.693257e-05 | 3.7391e-05 | 3.672586e-05 | 3.806629e-05 | 2.488314e-05 | 2.5691e-05 | 4.001572e-05 | 4.345057e-05 | 4.342357e-05 | 4.231686e-05 | 4.121457e-05 | 4.184829e-05 | 4.106515e-05 | 4.007529e-05 | 3.961572e-05 | 2.51e-05 | 2.361572e-05 | 3.591229e-05 | 3.569772e-05 | 3.608086e-05 | 3.608086e-05 | 3.409772e-05 | 3.409772e-05 | 3.573929e-05 | 3.290558e-05 | 2.27e-05 | 2.333143e-05 | 3.643143e-05 | 3.879886e-05 |
7) EAS1 Energy Efficiencies or Quantum Efficiencies
Energy/Quantum efficiencies are calculated using below formula:
QE = -0.0214*alog10(Energy)^3 + 0.074*alog10(Energy)^2 - 0.0594*alog10(Energy) + 0.8875
EAS1 Energies calulated are from initial Ratio of 0xDEB851 (decimal: 14596177), initial Vmax of 0x6718A (decimal: 422282) and a Kfactor of 6.53.
Below table shows EAS1 energies used in-flight since commissioning and corresponding quantum efficiencies.
| Energy (eV) | Quantum Efficiency |
|---|
| 5291.65 | 0.587498 |
| 4603.73 | 0.610997 |
| 4005.24 | 0.633318 |
| 3484.55 | 0.654488 |
| 3031.57 | 0.674535 |
| 2637.46 | 0.693489 |
| 2294.59 | 0.711377 |
| 1996.29 | 0.728228 |
| 1736.77 | 0.744070 |
| 1511.00 | 0.758932 |
| 1314.56 | 0.772842 |
| 1143.66 | 0.785830 |
| 994.992 | 0.797921 |
| 865.634 | 0.809147 |
| 753.105 | 0.819533 |
| 655.200 | 0.829110 |
| 570.026 | 0.837905 |
| 495.917 | 0.845949 |
| 431.445 | 0.853267 |
| 375.356 | 0.859889 |
| 326.56 | 0.865842 |
| 284.104 | 0.871157 |
| 247.175 | 0.875860 |
| 215.033 | 0.879982 |
| 187.089 | 0.883548 |
| 162.766 | 0.886589 |
| 141.601 | 0.889133 |
| 123.193 | 0.891208 |
| 107.178 | 0.892842 |
| 93.2437 | 0.894064 |
| 81.1136 | 0.894903 |
| 70.575 | 0.895385 |
| 61.4022 | 0.895541 |
| 53.42 | 0.895399 |
| 46.4652 | 0.894986 |
| 40.4252 | 0.894331 |
| 35.1747 | 0.893464 |
| 30.6009 | 0.892412 |
| 26.616 | 0.891200 |
| 23.1574 | 0.889864 |
| 20.15 | 0.888429 |
| 17.531 | 0.886921 |
| 15.2503 | 0.885369 |
| 13.2579 | 0.883796 |
| 11.5411 | 0.882252 |
| 10.0374 | 0.880740 |
| 8.73416 | 0.879304 |
| 7.59383 | 0.877960 |
| 6.60387 | 0.876747 |
| 5.75176 | 0.875701 |
| 4.9999 | 0.874827 |
| 4.34828 | 0.874169 |
| 3.78438 | 0.873757 |
| 3.29567 | 0.873612 |
| 2.85708 | 0.873772 |
| 2.49368 | 0.874244 |
| 2.16788 | 0.875084 |
| 1.87966 | 0.876338 |
| 1.64157 | 0.877929 |
| 1.41601 | 0.880142 |
| 1.24058 | 0.882570 |
| 1.07767 | 0.885648 |
| 0.93983 | 0.889155 |
| 0.81452 | 0.893395 |
8) EAS2 Energy Efficiencies or Quantum Efficiencies
Energy/Quantum efficiencies are calculated using below formula:
QE = -0.0214*alog10(Energy)^3 + 0.074*alog10(Energy)^2 - 0.0594*alog10(Energy) + 0.8875
EAS2 Energies calulated are from initial Ratio of 0xDEB851 (decimal: 14596177), initial Vmax of 0x6718A (decimal: 422282) and a Kfactor of 6.28.
Below table shows EAS2 energies used in-flight since commissioning and corresponding quantum efficiencies.
| Energy (eV) | Quantum Efficiency |
|---|
| 5089.06 | 0.594205 |
| 4427.47 | 0.617372 |
| 3851.9 | 0.639367 |
| 3351.15 | 0.660219 |
| 2915.5 | 0.679957 |
| 2536.49 | 0.698609 |
| 2206.74 | 0.716204 |
| 1919.86 | 0.732769 |
| 1670.28 | 0.748334 |
| 1453.15 | 0.762926 |
| 1264.23 | 0.776575 |
| 1099.88 | 0.789308 |
| 956.899 | 0.801153 |
| 832.493 | 0.812141 |
| 724.272 | 0.822298 |
| 630.115 | 0.831653 |
| 548.203 | 0.840234 |
| 476.931 | 0.848072 |
| 414.927 | 0.855192 |
| 360.985 | 0.861624 |
| 314.057 | 0.867395 |
| 273.228 | 0.872536 |
| 237.712 | 0.877073 |
| 206.801 | 0.881037 |
| 179.926 | 0.884452 |
| 156.535 | 0.887351 |
| 136.18 | 0.889761 |
| 118.477 | 0.891709 |
| 103.075 | 0.893225 |
| 89.6739 | 0.894337 |
| 78.0082 | 0.895073 |
| 67.873 | 0.895461 |
| 59.0515 | 0.895530 |
| 51.3748 | 0.895309 |
| 44.6863 | 0.894825 |
| 38.8776 | 0.894108 |
| 33.8281 | 0.893187 |
| 29.4293 | 0.892087 |
| 25.597 | 0.890837 |
| 22.2708 | 0.889470 |
| 19.3785 | 0.888012 |
| 16.8598 | 0.886490 |
| 14.6665 | 0.884931 |
| 12.7503 | 0.883359 |
| 11.0993 | 0.881823 |
| 9.65311 | 0.880328 |
| 8.39977 | 0.878918 |
| 7.3031 | 0.877607 |
| 6.35105 | 0.876434 |
| 5.53156 | 0.875437 |
| 4.80848 | 0.874620 |
| 4.18181 | 0.874028 |
| 3.6395 | 0.873688 |
| 3.1695 | 0.873624 |
| 2.7477 | 0.873874 |
| 2.39821 | 0.874441 |
| 2.08488 | 0.875386 |
| 1.8077 | 0.876755 |
| 1.57872 | 0.878464 |
| 1.3618 | 0.880813 |
| 1.19308 | 0.883371 |
| 1.03641 | 0.886595 |
| 0.903849 | 0.890252 |
| 0.783336 | 0.894657 |
